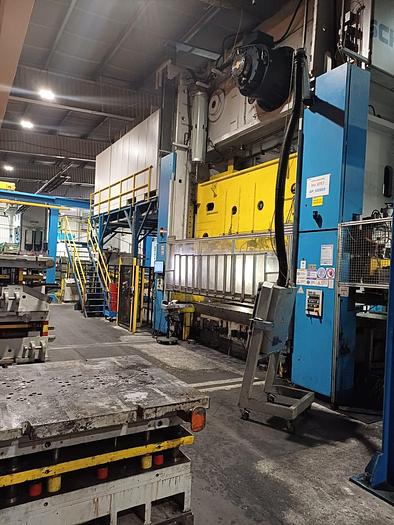

Schuler 630 ton Transfer Press
Schuler 630 ton Transfer Press
Contact us for price
Description
Direct drive lower roller servo, direct servo of upper drive, security integrated into unit, fast hydraulic ventilation of upper roller, manual intake height adjustment.
TRANSFER
Type T/510450
Year 2010
Band Thickness 0.5-3 mm
Transfer rail in 105 mm
Transfer rail max 1300 mm
DECOILER
Model AC-RM-EHP-1300
Feed roller diameter 130 mm
Band width min 80 mm
Band width max 1300 mm
Specifications
| Manufacturer | Schuler |
| Model | MSD2-630-4,0X1,8-400 |
| Year | 2010 |
| Condition | Used |
| Stock Number | MOS3737 |
| Capacity 1 | 630 ton |
| Bed area | 4000 mm x 1800 mm |
| Speed | 3-60 spm |
| Stroke | 80-400 mm |
| Adjustment | 300 mm |
| Approx Weight Of Press | 132,000 kg |
