6 x Mechanical Press Line
6 x Mechanical Press Line
Contact us for price
Description
1 x Muller (1979) 1600-ton Double Action Hydraulic Press
5 x Wilkins & Mitchell (1977-78) 800 ton 4 Point Single Action Mechanical Presses

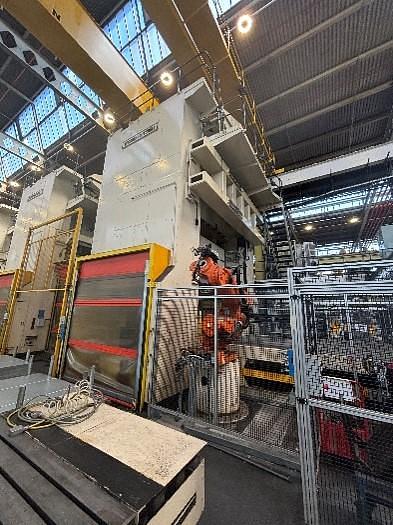

Complete press line, with two moving bolsters each press through side columns, destacker system with two loading tables, robot at the head of the line, and iron hands in-between each press, robot at the end of the line and main parts conveyor, completely rewired, Siemens S7 controls.
Specifications
| Manufacturer | 1 x Muller / 5 x Wilkins & Mitchell |
| Model | BZE-1600-36.1.1 / S4-800-144-84 4 Point |
| Year | 1978 |
| Condition | Used |
| Serial Number | 77/3493-7, 77/3494-7, 77/3495-7, 78/3496-7, 78/3497-7 |
| Stock Number | MUK2301 (3) |
| Capacity | 800 tons |
| Bed area | 3650 mm x 2130 mm |
| Slide area | 3650 mm x 2130 mm |
| Thickness of Bolster | 280 mm |
| Bolster height above floor | 635 mm |
| Slide stroke | 762 mm |
| Max Shut Height SDAU | 1470 mm |
| Min Shut Height SDAU | 1115 mm (adaptor plate to bolster face) |
| Slide adjustment | 355 mm |
| Variable Speed | 10-18 spm |
