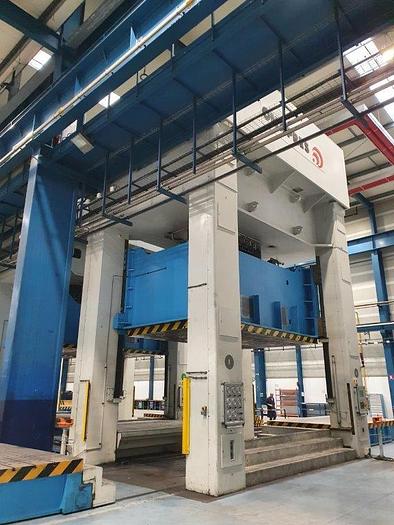

Ona Pres (Fagor) Double Sided Single Action Hydraulic Press With Twin Lateral Moving Bolster And Bed Cushion
No longer available
Ona Pres (Fagor) Double Sided Single Action Hydraulic Press With Twin Lateral Moving Bolster And Bed Cushion
Description
● DOUBLE SIDED CONSTRUCTION WITH THREE CYLINDERS
● TWO LATERAL MOVING BOLSTERS WITH EXIT ON BOTH SIDES
● BED CUSHION AND RAM CUSHION
● PLC SIEMENS SIMATIC TOUCH PANEL
● FRONT AND SIDE SAFETY BARRIERS REGULATIONS AND “UE” MARKING
Specifications
| Manufacturer | Ona Pres (Fagor) |
| Model | EMD 200-5-AQ |
| Year | 2007 |
| Condition | Used |
| Stock Number | HOS3245 |
| Capacity | 2000 ton |
| Bed area | (2) 5000 mm x 3000 mm |
| Lateral window size | 3300 mm |
| Slide area | 5000 mm x 3000 mm |
| Capacity of bed cushion | 400 ton |
| Stroke of bed cushion | 400 mm |
| Capacity of slide cushion | 200 ton |
| Daylight (min) | 900 mm |
| Daylight (max) | 2700 mm |
